Ropp Cap Sealing Machine

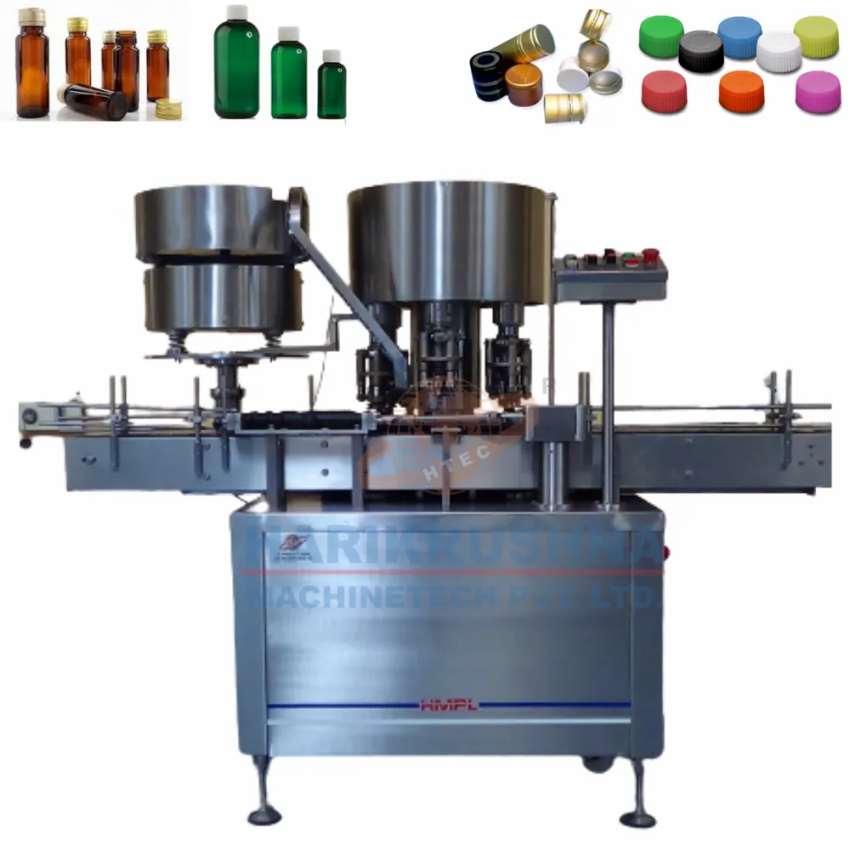

Automatic Rotary Ropp Screw Cap Sealing Machine
₹
475,000.00
| General Details: | |
| Automation Grade | Automatic |
| Voltage | 440 V AC |
| Driven Type | Electric |
| Frequency | 50 Hz |
| model | HMPL-RBS |
| Others: | |
| Availability | In Stock |
| Brand | HMPL |
| Cap Feeding System | Vibratory Bowl with chute Suitable Cap |
| Cap Size) | 22 25 mm / 25 28 mm |
| Capping Head Type | ROPP / SCREW Cap |
| Change Parts Required | (A) Bottle: Star Wheel, Center guide. (B) Cap: Vibratory bowl, Delivery chute Die. |
| Clutch Overload - Machine Stop. | Low noise level, low power consumptions. |
| Country of Origin | Made in India |
| Dimensions | 2440 mm (L) x 850 mm (W) x 1900 mm (H) Approx. |
| Direction of Movement | Left to Right |
| Height of Conveyor | 850±50 mm Adjustable |
| Model Name/Number | HMPL-RBS |
| Net Weight | 350 Kg Approx. |
| No cap in chute vibrator on Machine Stop. | No bottles Machine Stop. |
| No. of Sealing Head | 1 / 4 / 6 / 8 Nos. |
| Output Speed | 30 to 120 Bottles/Minute |
| Phase | Three Phase |
| Power Supply | Three Phase / 440 V AC / 50 Hz |
| Product Size | 10 ml to 500 ml Bottles |
| Rigid vibration free construction for trouble free performance. | SS Elegantly matt finished body. |
| Sealing pressure can be varied to suit different gauges and size of caps. | There is a special designed vibratory bowl and chute with no cap sensors for continuous flow of the cap. |
| Self-lubricating UHMW- PE guide profile for low friction wears surface, smooth and noiseless conveying. | Star wheel Guide MOC: UHMW–White. |
| Single motor synchronizes conveyor, star wheel, platform turret. | Adjustable height of conveyor belt to align with other machine of the line. |
| Spring loaded pin in the center of capping dye. | Fix set pin for starplate in-feed screw. |
| SS cladding or hard chrome plating of all exposed parts to ensure long life and resistance against corrosion. | No bottle no cap arrangement. |
| The unit is made compact versatile as per GMP norms. | The structure is made of MS cladding with SS 304. |

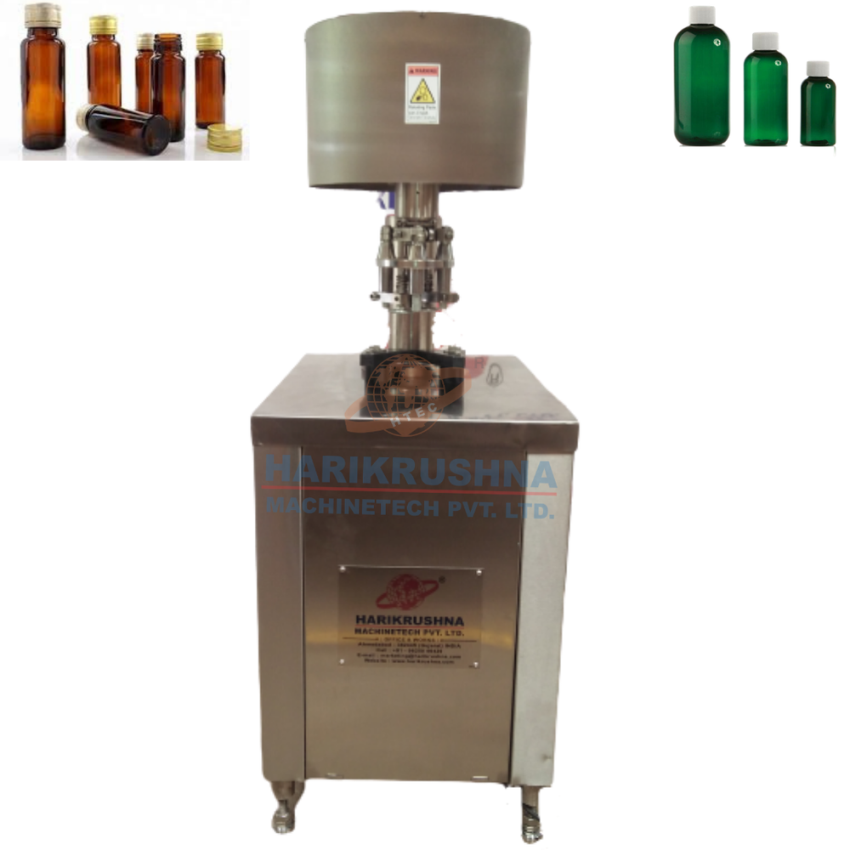

Semi Automatic Ropp Cap Sealing Machine, Capacity: 20 mm, 22 mm, 25mm, 28mm
₹
151,000.00
| General Details: | |
| Automation Grade | Semi Automatic |
| Voltage | 230 V AC |
| Driven Type | Electric |
| Material | ROPP OR SCREW Cap Head |
| Others: | |
| Availability | In Stock |
| Brand | HMPL |
| Cap Size | 20 mm, 22 mm, 25mm, 28mm, Or as per Customer requirements. |
| Capacity | 20 mm, 22 mm, 25mm, 28mm |
| Model Name/Number | HMPL-RBS-SEMI |
| Size/Dimension | 15 mm to 90 mm |
Automatic Rotary Ropp Cap Sealing Machine, Capacity: 10 ml to 500 ml Bottles
₹
445,000.00
| General Details: | |
| Automation Grade | Automatic |
| Voltage | 440 V AC |
| Material | SS Steel |
| Others: | |
| Availability | In Stock |
| Brand | HMPL |
| Cap Size | 22 & 25 mm / 25 & 28 mm |
| Capacity | 10 ml to 500 ml Bottles |
| Model Name/Number | HMPL-RBS |
| Size/Dimension | 2440 mm (L) x 850 mm (W) x 1900 mm (H) Approx. |
