Manual Liquid Filling Machine

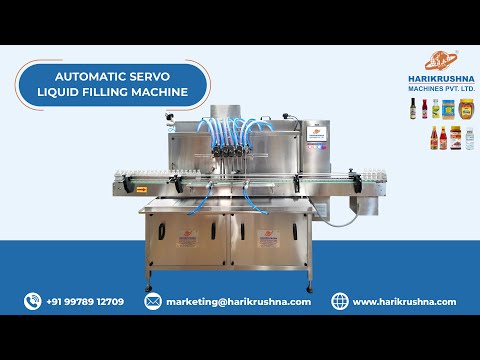

Automatic Servo Liquid Filling Machine
₹
1,239,000.00
| General Details: | |
| Driven Type | Electric |
| Material | Stainless Steel |
| model | hmpl–pre–rbf |
| Usage/Application | SERVO FILLING MACHINE |
| Others: | |
| Air Pressure | 4 TO 6 KG |
| air supply | 4 to 6 kg/cm² |
| Availability | In Stock |
| Brand | HMPL |
| dimensions | 2100 mm (l) x 900 mm (w) x 2000 mm (h) approx. |
| direction of movement | left to right |
| Filling Head | 4, 6, 8 |
| filling head | 4/6/8 heads |
| Filling Speed | 100 BPM |
| filling volume | 50 ml to 5000 ml pet/hdpe bottles/jars |
| Frequency | 50 Hz |
| Model Name/Number | HMPL-PRE-RBF |
| net weight | 400 kg approx. |
| Number Of Phases | Three Phase |
| output speed | 20 to 80 bottles/minute(speed depends upon fill volume & viscosity of liquid) |
| Power | 3 phase |
| power consumption | 2. 5 kva |
| power supply | three phase + neutral + earthing / 440 v ac / 50 hz |
| product moc | pet/hdpe bottles/jars |
| Voltage | 440 V AC |
| Warranty | 1 year |
| Weight | 400 |
| working height | 850 ± 50 mm adjustable |

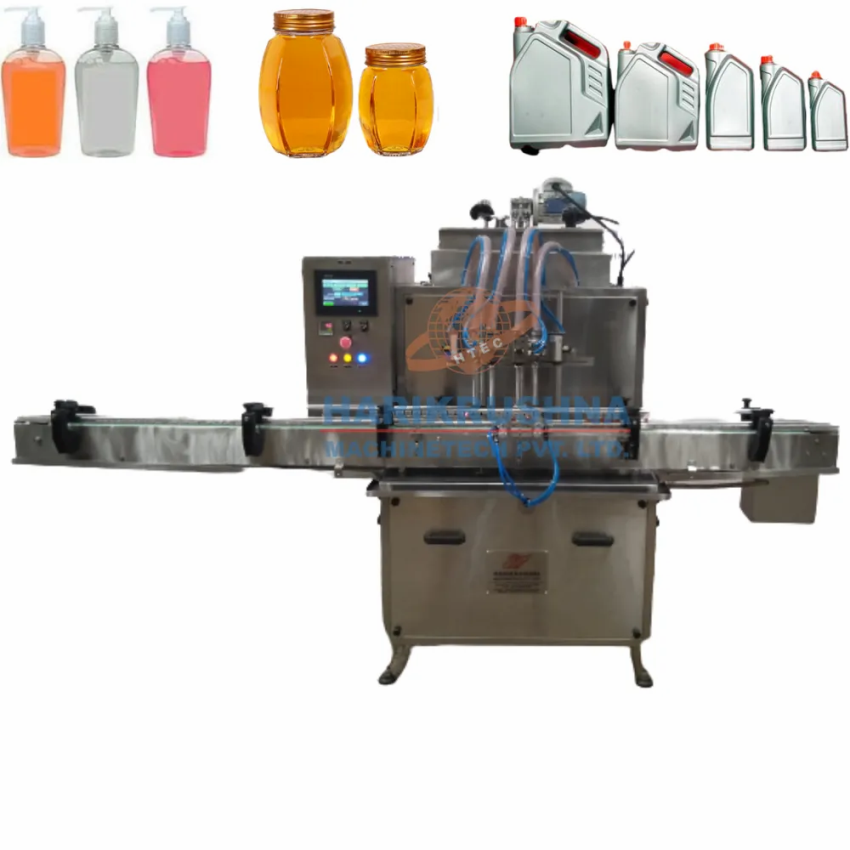

Automatic Servo Base Liquid Filling Machine
₹
750,000.00
| General Details: | |
| Driven Type | Hydraulic, Mechanical, Electric |
| Usage/Application | 50 ml to 5000 ml PET/HDPE Bottles/Jars |
| Others: | |
| Availability | In Stock |
| Brand | HMPL |
| Capacity | 50 ml to 5000 ml PET/HDPE Bottles/Jars |
| Filling Head | 4 / 6 / 8 / 10 / 12 Heads |
| Model Name/Number | HMPL-PRE-RBF |
| Power | Single Phase |
| Voltage | 415 V AC |
| Warranty | 1 year |
| Weight | 450 KG |
Paint Filling Machine
₹
1,250,000.00
| General Details: | |
| Driven Type | Hydraulic, Electric, Mechanical |
| Usage/Application | Bottles |
| Others: | |
| Automation Grade | Automatic |
| Availability | In Stock |
| Brand | HMPL |
| Capacity | 60 to 120 BPM |
| Filling Head | 4, 6, and 8 |
| Model Name/Number | HMPL |
| Packaging Type | wooden packing |
| Voltage | 440 V |
| Warranty | 1 year |
