Price ₹
12,45,000.00
| General Details: | |
| Material | Stainless Steel |
| Usage/Application | Pharma |
| Others: | |
| Automation Grade | Automatic |
| Availability | In Stock |
| Brand | HMPL |
| Capacity | 120 to 240 BPM |
| Driven Type | Electric |
| Model Name/Number | HMPL |
| Packaging Type | Wooden Packaging |
| Warranty | 1 year |
Price ₹
9,00,000.00
| General Details: | |
| Voltage | 415 V |
| Material | Stainless Steel |
| Frequency | 50 Hz |
| model | HMPL–PRE–RBF |
| Phase | Three Phase |
| Others: | |
| Air Supply | 4 to 6 Kg/Cm² |
| Availability | In Stock |
| Brand | HMPL |
| Country of Origin | Made in India |
| Dimensions | 2100 mm (L)x 900mm (W)x 2000mm(H) Approx. |
| Driven Type | Electric |
| Filling Head | 4/ 6 / 8 / 10 / 12 Heads |
| Filling Range | Filling Range |
| Filling Volume | 10 ml Bottles |
| Machine Type | Automatic |
| Net Weight | 500 Kg Approx. |
| Output Speed | 30 to 150 Bottles/Minute (depends upon viscosity of liquid volume) |
| Power Consumption | 2.5 KVA |
| Power Supply | 3 Phase + Neutral + Earthing /415 V AC / 50Hz |
| Working Height | 860 ± 50 mm Adjustable |

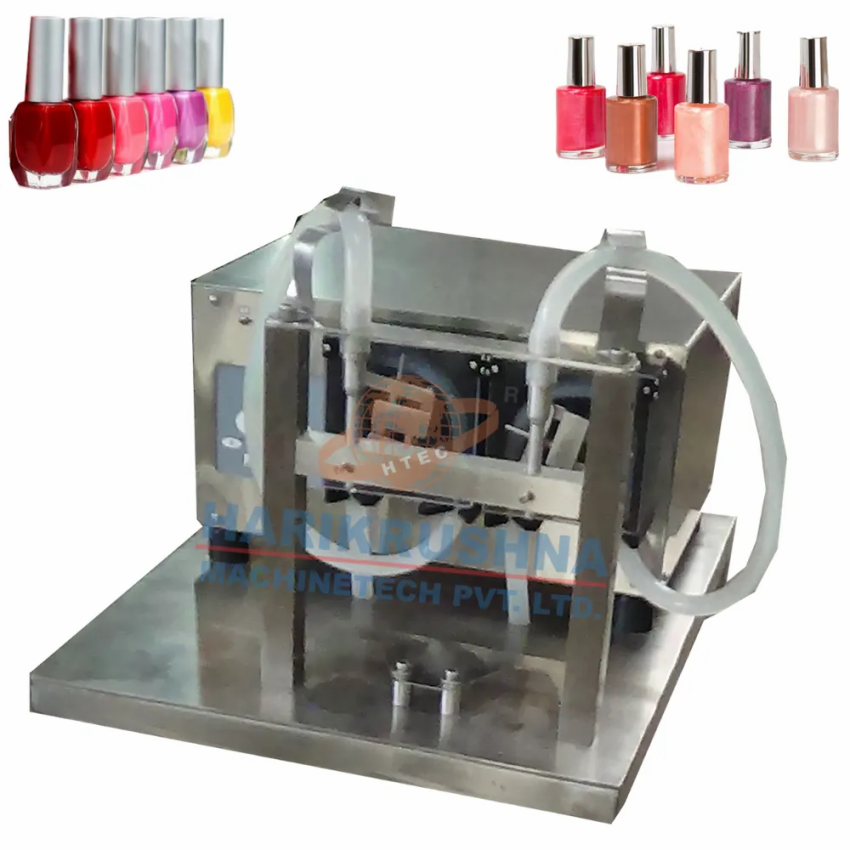

Price ₹
1,75,000.00
| Others: | |
| All the functions are PLC controlled. | Very High fill Accuracy of ± 0.5 %. |
| Automation Grade | Automatic |
| Availability | In Stock |
| Brand | HMPL |
| Country of Origin | Made in India |
| Digitally controlled settings. | Single phase low voltage requirement. |
| Dimensions (L x W x H) | 150 x 400 x 250 Inch |
| Driven Type | Electric |
| Easy to adjust different filling volume. | There is no direct contact of liquid material with any mechanical component because the liquid passing through the Pharma grade silicon tubes only. |
| Filling Capacity | 0.1 ml onwards |
| Machine Type | Semi-Automatic |
| Model Number | HMPL - SPRF - 1.5 |
| Net Weight | 3.0 Kg |
| No change parts required for different filling volumes / bottles - Except tube dia. | Flow of liquid can be controlled by PLC. |
| Output | 1 ml 25 - 30 bpm (Water)/Minute |
| Power Consumption | 0.20 kW |
| Power Supply | Single Phase / 230 V AC / 50 Hz (Stabilized) |
| Pump Capacity | 1.5 ltr/min max |
| Suitable For | 0.1ml - 5ml |
| The contact parts are made of SS 316L such as Nozzles. | Rigid vibration free construction for trouble free performance. |
| The unit is made compact & versatile as per GMP norms. | The whole structure is made of SS 304 matt finish. |
| Unique feature of "PRIME" is useful to remove air which is inside the filling line very quickly to minimize the production loss also the prime feature is useful to clean filling line with special appl | Machine has electronic components such as Stepper motor, PLC, Feather touch key board and sensor etc, thus avoiding mechanical parts such as Piston, Syringe, Teflon piston rod and pneumatic etc. |
| Use of pharma grade / food grade silicon tube for the flow of liquid to facilitate high temperature liquid (up to 120°C). | Unique Bottle & Nozzle holding device for various height adjustments without any change parts. |
| User friendly and high scalability. | No Bottle No Filling. |
| Working Height | Table Top |
Price ₹
7,50,000.00
| General Details: | |
| Material | Stainless Steel |
| Usage/Application | Industrial |
| Others: | |
| Automation Grade | Automatic |
| Availability | In Stock |
| Brand | HMPL |
| Capacity | 120 BPM |
| Country of Origin | Made in India |
| Driven Type | Electric |
| Packaging Type | Wooden Packaging |
Price ₹
7,50,000.00
| General Details: | |
| Voltage | 440 V |
| Usage/Application | Bottles |
| Others: | |
| Availability | In Stock |
| Brand | HMPL |
| Capacity | 40 to 120 BPM |
| Driven Type | Hydraulic, Electric, Mechanical |
| Filling Head | 4, 6 and 8 Head |
| Model Name/Number | HMPL |
| Warranty | 1 year |
| Weight | 450 Kg. |
Price ₹
7,50,000.00
| Others: | |
| Automation Grade | Automatic |
| Availability | In Stock |
| Driven Type | Electric |
| Filling Range | 30 to 250 ml |
| Machine Capacity | 60-240 bottles/min |
| Model Name/Number | HMPL |
| Packaging Type | Bottles |
| Power Consumption | 3-4 HP |
| Warranty | More than 1 year |
