Automatic Cap Sealing Machine

An automatic cap sealing machine is an industrial device – it applies and secures closures, like caps, lids, or seals, onto containers without human effort. This protects the product and keeps it clean, along with shows if someone opened it. Companies in the pharmaceutical, food plus beverage, cosmetic as well and chemical sectors use these machines often. Regularly, in addition to cleaning, sealing matters for product safety and following rules. The machine begins its work when containers move onto a conveyor or rotary indexing system – this system puts each container in the right spot for the sealing process. A sealing method varies with the machine design and also the product needs. It might twist, push, crimp, or use induction. For induction sealing, the machine puts out a high-frequency electromagnetic field. That field warms an aluminium foil liner inside the cap, so it sticks to the container's rim; this process does not touch the product – it works well and suits products that need protection from dirt, wetness, or tampering. The automatic cap sealing machine handles many container shapes and sizes, next to materials such as glass and plastic, along metal. It comes with adjustable torque control and automatic cap feeding, as well as detection systems – these features help to seal each container regularly and tightly. Better models may have easy-to-use touchscreen displays, programmable logic controllers, plus connections to other packaging equipment. This allows a smooth production line. Automating the sealing process raises production speed a lot – it also cuts labour costs and lowers the chance of human mistakes. Because of their sturdy build and also flexibility, automatic cap sealing machines are necessary for companies that require high output and exact work, as well as dependable product protection. Discover a wide selection of automatic cap sealing machines at AAJJO – shop now for the best deals!

Automatic Vial Cap Sealing Machine
Automatic Vial Cap Sealing Machine
Automatic Vial Cap Sealing Machine
Automatic Vial Cap Sealing Machine
Automatic Vial Cap Sealing Machine
Automatic Vial Cap Sealing Machine
Automatic Vial Cap Sealing Machine

Automatic Vial Cap Sealing Machine

₹ 521,000.00

General Details:
MaterialSS304
Automation GradeAutomatic
Model Name/NumberHMPL-PRE-RVS
Driven TypeElectric
FinishStainless Steel
Others:
BrandHMPL
Cap Diameter13 mm to 32 mm
Cap Size13 mm to 32 mm
Control PanelHMI
Conveyor Height875 +- 50 mm Adjustable
Country of OriginMade in India
Dimension2525 mm (L) x 950 mm (W) x 2000 mm (H) Approx.
Dimensions2525 mm (L) x 950 mm (W) x 2000 mm (H) Approx.
Electrical3 Phase + Neutral + Earthing / 415 V AC / 50 Hz
Frequency50 Hz
GradeSS304
HMI Touch ScreenDelta
I Deal InNew Only
Main Gear BoxBonfiglioli
Minimum Order Quantity1
Net Weight600 Kg Approx.
No. Of Heads1/4/6/8/12 Heads
Output or HourUp to 14400 Vials/ Hour
Output Per HourUp to 14400 Vials/ Hour
Output speed30 to 120 Vials/Minute
Overall Dimension2525 mm (L) x 950 mm (W) x 2000 mm (H) Approx.
Phase3 Phase
Power3 Phase + Neutral + Earthing / 415 V AC / 50 Hz
Product TypeVials
Production Rate30 to 240 Vials/ Minute
Programmable Logic Controller ( PLC )Delta
Sealing Head1/4/6/8/12 Heads
Sealing Head DesignCrimping
Size2525 mm (L) x 950 mm (W) x 2000 mm (H) Approx.
Speed30 to 240 Vials/ Minute
Suitable For2 ml to 100 ml (with the help of required change parts)
Surface FinishStainless Steel
Voltage3 Phase +N +E 415V AC/ 50 Hz
Weight600 KG Approx.
Working Height875 +- 50 mm Adjustable
Business TypeManufacturer, Supplier
Buy Now

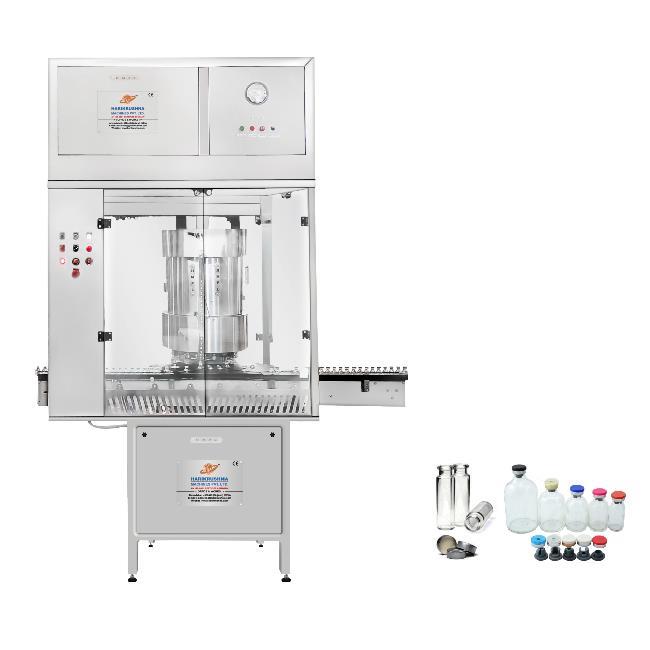

The Automatic Vial Cap Sealing Machine, model HMPL-PRE-RVS from HMPL, serves as a complete automatic option for fast vial sealing work in medicine and drink plants. Builders use SS304 stainless steel, so the machine lasts, stays clean along with resists rust. This suits it for careful production. The system runs on electricity from a sturdy three phase plus neutral and earthing 415V AC, 50 Hz power line - this connects it with typical factory power setups. Its small size, about 2525 mm (L) x 950 mm (W) x 2000 mm (H), fits well in current production places. The machine has an adjustable working height of 875 ± 50 mm. That helps people work also joins easily with present conveyor lines. The machine comes with several sealing heads, either 1, 4, 6, 8, or 12. This offers choices for output and vial sizes, from 2 ml to 100 ml, if a user changes parts. The crimping head design seals vials tightly as well as resists tampering, which matters for medicine. A Bonfiglioli main gearbox powers the machine, so it runs well and smoothly at quick speeds - it seals 30 to 240 vials per minute plus up to 14,400 vials per hour when busy. A Delta programmable logic controller (PLC) and HMI touch screen come with it; they let a user direct it, watch it live as well as adjust sealing settings simply. The machine's solid build also exact parts suit - it for steady, big production without much upkeep. Its whole surface is stainless steel, which adds to its cleanliness and meets business rules. The machine holds cap widths from 13 mm to 32 mm; this fits many medicine as well as drink vial shapes. Workers in India make this machine, and it sells as only new equipment. This shows HMPL's focus on quality. Because it has much automation, the Automatic Vial Cap Sealing Machine cuts down on hand work plus makes production better - this makes it a good pick for builders who want dependable, local automation for filling liquids and sealing vials.
