A bottle washing machine is a specialised industrial or semi-industrial device – it cleans and sanitises bottles. Companies in the beverage and pharmaceutical industries, along with food industries, use these machines. The machines automate the process; they remove residues and microorganisms as well as contaminants from the inside and outside surfaces of bottles. This process maintains high standards of hygiene plus product safety. Bottle washing machines have various designs to fit different bottle types and sizes in addition to production amounts. For example, some models have many rinsing nozzles and stages - this allows sequential washing with water, hot water next to sometimes chemical solutions like caustic soda. That multi-stage process cleans bottles thoroughly, even those with stubborn residues. The machines often have stainless steel bodies because the material lasts long and is easy to clean. Parts like brushes, jets along with collection trays help clean well also recycle water. Bottle washers handle glass or PET bottles. The size range goes from small 200ml soda bottles to large 20-liter water cans. Some advanced models include modules that take off labels. They also have synchronized rotary high powered jetting systems for cleaning inside surfaces. The washing process can be manual, semi automatic, or fully automatic. Their capacity spans from a few dozen bottles per minute to several hundred - these machines are needed to uphold hygiene, decrease manual work as well as meet industry rules. They are important in modern bottle filling and packaging lines. Discover a wide selection of bottle washing machines at AAJJO – shop now for the best deals!
₹
450,000.00
| General Details: | |
| Model | Automatic Rotary Bottle Washing Machine - Glass and PP Bottles |
| Others: | |
| Container Type | Bottle |
| Country of Origin | Made in India |
| Drum Capacity | 75 Liters (2 nos.) |
| I Deal In | New Only |
| Minimum Order Quantity | 1 |
| Model Name/Number | HMPL-RBW-64 / 96 |
| Working Height | 875 +- 50 mm Adjustable |
| Plant Dimensions | 1600mm (L) x 1300mm (W) x 1300 mm (H) |
| Power Consumption | .0KW (Main Motor 0.5HP |
| Power Supply | 3 Phase / 440V AC/ 50Hz |
| Warranty | 1 year |
| Automation Grade | Automatic |
| Brand | HMPL |
| Capacity | 3600 to 7200 Bottles / Hour (Speed Depends on Products Size) |
| Container Size | 10 ml to 1 ltr |
₹
750,000.00
| General Details: | |
| Model | HMPL |

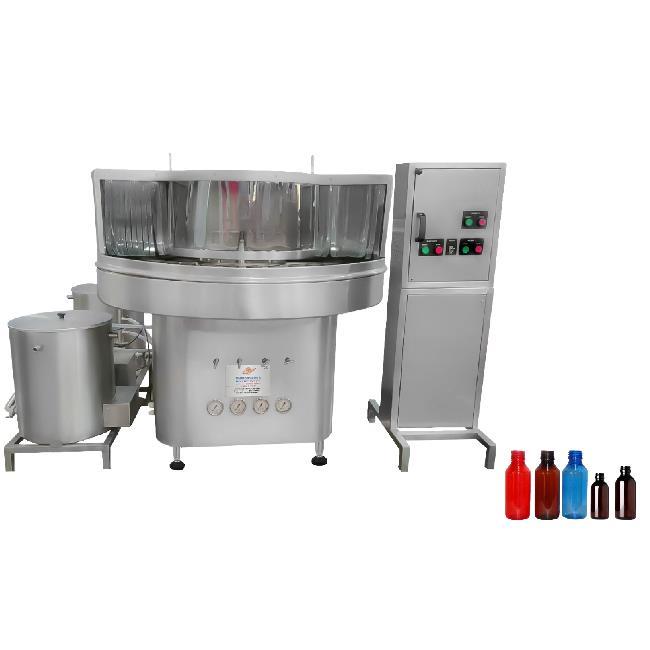

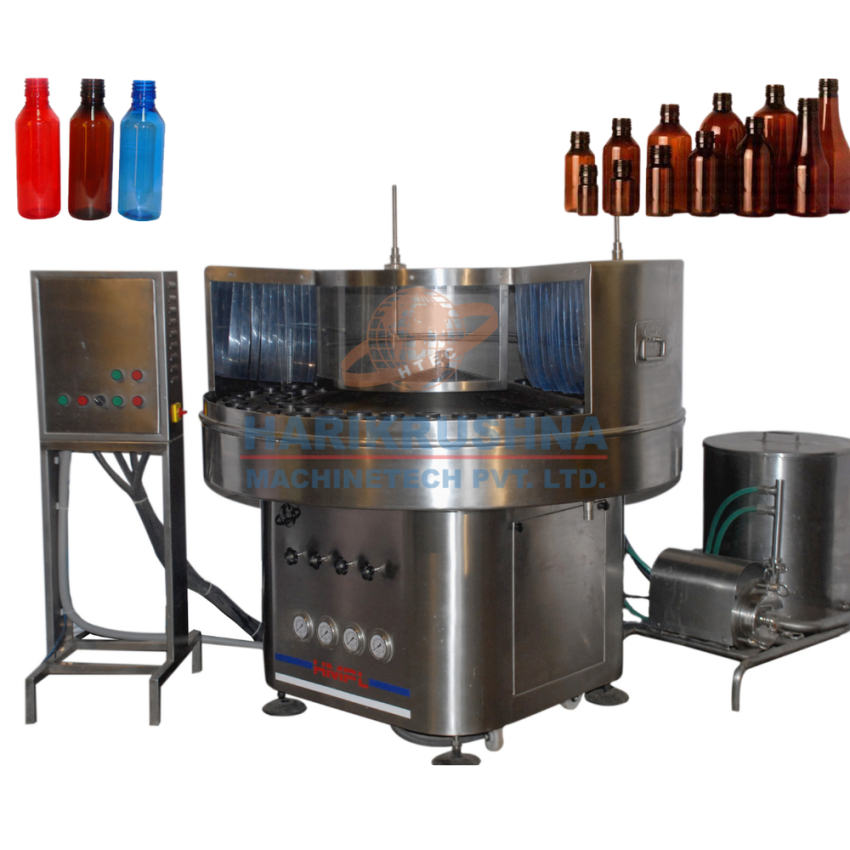

The Automatic Rotary Bottle Washing Machine - Glass and PP Bottles cleans glass in addition to PP bottles - it cleans bottles that hold 10 ml up to 1 liter. The machine has a rotary platform. Bottle holders sit on the platform. Flow regulators are also there. A Geneva mechanism helps it work exactly. The machine washes 3,600 to 7,200 bottles each hour. This machine works well for big production lines. Two stainless steel drums hold 75 liters each. The washing cycle works by itself - this washes bottles completely and needs little work from people. Workers adjust the height where it works. The machine is small, 1600mm by 1300mm by 1300mm. It fits into many production areas. The system uses 3-phase, 440V AC, 50Hz power. Its main motor uses little power. It handles both glass and polypropylene (PP) bottles. The machine works well and keeps products safe. The model HMPL-RBW-64/96 comes with a 1-year warranty. India makes this machine.
Explore the main components of the Automatic Rotary Bottle Washing Machine, including its stainless steel structure, rotary platform, bottle holders, flow regulators, pressure meter, solenoid valve, Geneva mechanism, stainless steel tanks with pumps and nozzles, electrical panel, and AC motor.
Explore the main components of the Automatic Rotary Bottle Washing Machine, including its stainless steel structure, rotary platform, bottle holders, flow regulators, pressure meter, solenoid valve, Geneva mechanism, stainless steel tanks with pumps and nozzles, electrical panel, and AC motor.
₹
250,000.00
| General Details: | |
| Model | HMPL–RBW–64 / 96 |
| Others: | |
| Air Consumption | 5 CFM |
| Air Supply | 4 to 6 kg/cm2 |
| Availability | In Stock |
| Capacity | 2800 to 8000 bottles / hour |
| Dimensions | 1600mm (L)x 1300mm (W)x 1300 mm(H) |
| Dimensions Approx. | 1600mm (L)x 1300mm (W)x 1300 mm(H) |
| Direction | Clockwise |
| Easy loading/unloading operation. | Individual solenoid valve use for each wash - which eliminates carbon plate and other accessories. This is to avoid leakages and minimize the maintenance ratio. |
| Easy to clean the base of the machine by removing the top cover. | The tanks capacity is 75 litres each. |
| First Wash | 300 Liters/Hour |
| Fourth Wash | No consumption as such, water loss during re-circulation shall be compensated OR Air Wash |
| Frequency | 50 Hz |
| Higher capacity of centrifugal pumps to wash bigger bottles (500ml 1000 ml). | Stationary nozzles to eliminate contamination of water cycles. |
| Individual flow regulating valves to control the flow of water. | Bottle guide system especially for lightweight bottle. |
| Machine Type | Automatic |
| Model Name/Number | HMPL-RBW-64 / 96 |
| Motor Power | 0.5HP |
| Net Weight Approx. | 450 Kg |
| Number of Cup Holder | 64 / 96 |
| Output Speed | 2800 to 8000 bottles / hour |
| Outside Wash | 300 Liters/Hour |
| Phase | Three Phase |
| Power | 5.0kW ( Pump 1HPX2 & Heater 3kW) |
| Power Consuption | 5.0KW (Main Motor: 0.5HP, Pump: 1HPX2 Heater: 3KW) |
| Power Supply | 3 Phase / 440V AC/ 50Hz |
| Rigid vibration free construction for trouble free performance. | The contact parts such as washing nozzle, washing pump impeller, tanks, cup/bottle holder plate are made of Stainless Steel 304. |
| Second Wash | No consumption as such, water loss during recirculation shall be compensated |
| Separate panel control to avoid any short circuit due to spraying of water. | SS glycerin fill pressure meter. |
| Specially designed Geneva Mechanism. | Four inner wash (Included one air wash , two inner wash with recycled tray) one outer wash |
| Specially designed SS 304 Impeller based AC motor for pumps. | Pumps and tanks are mounted on portable stand for easy maintenance and cleaning purpose. |
| Tank Capacity | 75 Litres (2 nos) |
| The unit is made compact versatile as per GMP norms. | The structure is made of SS 304. |
| Third Wash | 300 Liters/Hour |
| Voltage | 440V AC |
| Wash Cycle | 4 Inner + 1 Oute |
| Weight | 450 Kg |
| Working Hight | 850 ± 50 mm Adjustable |
| Working Hight | 850 +- 50 mm Adjustable |
₹
450,000.00
| Others: | |
| Weight | 550 Kg Approx. |
| Air Consumption | 5 CFM 4 to 6 Kg/Cm2 (Customer's Scope) |
| Automation Grade | Automatic |
| Availability | In Stock |
| Container Size | 50-100 ml |
| Container Type | Bottle |
| Cycle Timing | 1 Second for each wash + 1.5 second for traveling |
| Filling Material | Mineral Water |
| Model Name/Number | HMPL-WAVC |
| Warranty | 1 year |
| Water Consumption | 150 Liters / Hour / Cycle |
