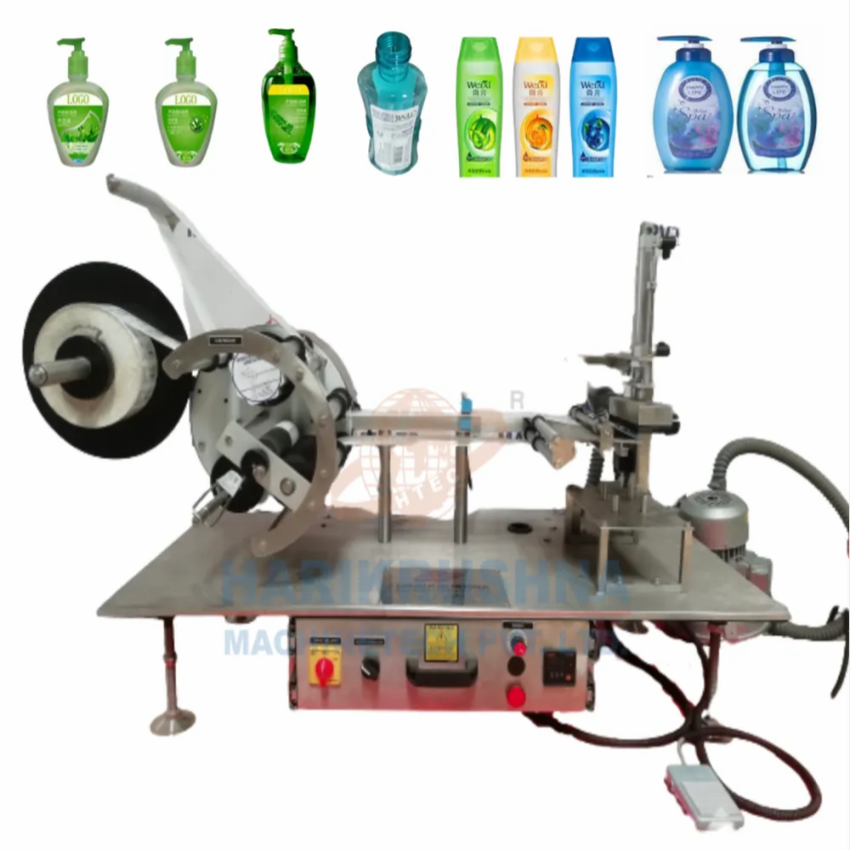

Price ₹
1,75,000.00
| General details: | |
| Capacity | Speed depends on product size, label size & manual loading unloading) |
| Automation grade | Semi-Automatic |
| Speed | Up to 15 Bottles/Minute |
| Others: | |
| Availability | In Stock |
| Bottle Type | Flat |
| Compressed Air | 4 to 6 |
| Conveyor Type | 1 |
| Design | Slim |
| Material | SS Steel |
| Model Name/Number | HMPL-TSHL |
| Usage/Application | Labeling On Round Bottle |
Price ₹
1,75,000.00
| General details: | |
| Capacity | Up to 15 Bottles/Minute |
| Automation grade | Semi-Automatic |
| Speed | Up to 15 Bottles/Minute |
| Others: | |
| Availability | In Stock |
| Bottle Type | Square |
| Compressed Air | 4 to 6 |
| Conveyor Type | 1 |
| Design | Slim |
| Material | SS Steel |
| Model Name/Number | HMPL-TSHL |
| Usage/Application | Sticker Labelling |

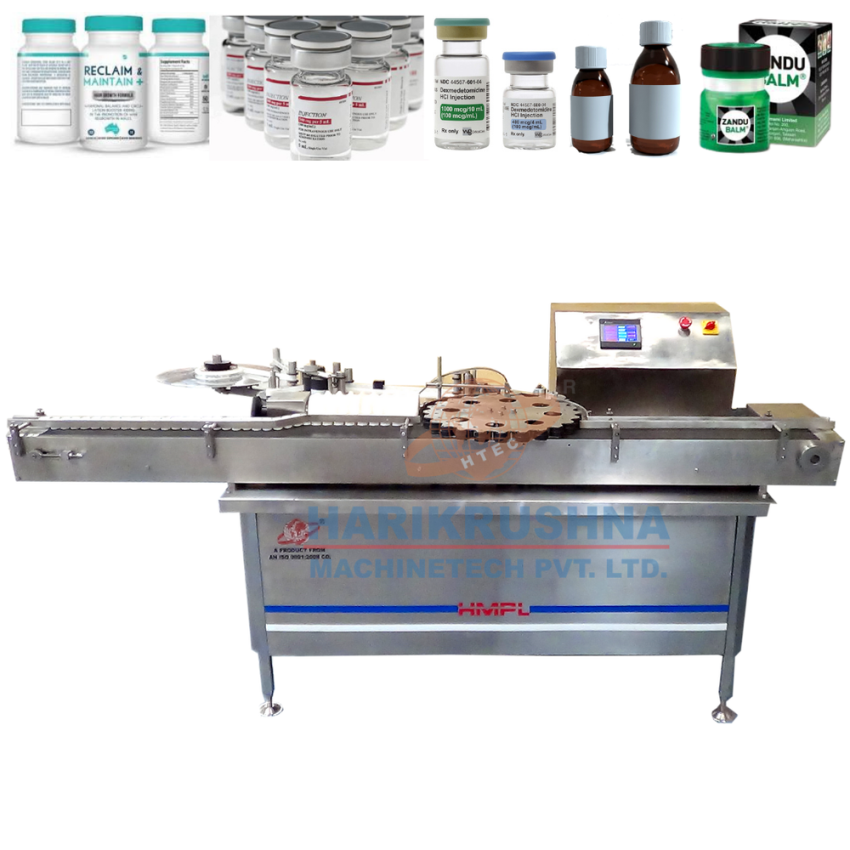

Price ₹
4,50,000.00
| General details: | |
| Voltage | 440 V AC |
| Phase | Three Phase |
| Model | HMPLRBL |
| Frequency | 50 Hz |
| Others: | |
| 9 Feet long SS slat conveyor. | Conveying system to convey the product with easy adjustable side guide. |
| Air Supply | N.A. |
| All moving parts of the machine covered by safety guards of SS. | All expose parts of MS are powder coated / hard chrome plated. |
| Availability | In Stock |
| Bottle Type | Round |
| Brand | HMPL |
| Break assembly to avoid variation during releasing of roll. | Most reliable and proven components such as Festo/SMC make pneumatic and electrical/electronic such as Bonfiglioli/Motovario make AC Motor, Delta/Allen Bradley make AC Drives, Sensors, PLC HMI (Feathe |
| Conveying systemequipped with imported AC frequency variable drive for variable speed with constant torque. | Full / Partiallabeling is possible. |
| Conveyor Width | 100 mm |
| Country of Origin | Made in India |
| Dimensions | 2745 mm(L) x 920 mm(W) x 850 + 50mm (H) |
| Fiber optic based label gap sensor to sense the gap between two labels (Sensor Make: LEUZE/BANNER/SUNX). | Reel mechanism (Size: 305mm) to hang the roll with core ID of 76 mm (3"). |

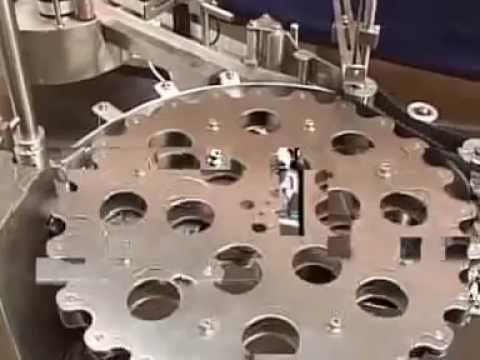

| In-feed screw for product feeding into rotary star plate. | Rotary Star Plate base designed for high speed labeling. |
| Label Size | Min: 65 mm H x 140 mm Max: 150 mm H x 260 mm L |
| Machine suitable for round products like Vial / Bottle/ Jar / Tin and Container. | Specially designed drive mechanism for Label Release. |
| Model Name/Number | HMPL-RBL |
| Net Weight | 450kgs Approx. |
| No Bottle No Labeling. | Fiber optic based product sensor to sense the product (Sensor Make: LEUZE/BANNER/SUNX). |
| Output Speed | Up to 300Bottles/Minute (Speed depends on label and products size) |
| Power Supply | Three Phase / 440V AC / 50Hz |
| Product Samples | Round Bottles |
| ProductSize () | 15mm to 90mm |
| Specially designed drive mechanism for Label Release. | Dispensing unit to dispense labels. |
| The unit is made compact versatile as per GMP norms | The structure is made of MS cladded with SS 304 |
| Usage/Application | Sticker Labeling |
| Various label position adjustment with the help of sliding pipe assembly. | Various label position adjustment with the help of sliding pipe assembly. |
| Working Height | 850+ 50mm Adjustable |
Price ₹
3,45,000.00
| General details: | |
| Capacity | 100 to 600 Bottles/Minute |
| Automation grade | Automatic |
| Voltage | 230V AC |
| Phase | Single Phase |
| Speed | 100 to 600 Bottles/Minute |
| Frequency | 50Hz |
| Others: | |
| Availability | In Stock |
| Bottle Type | Round |
| Brand | HMPL |
| Country of Origin | Made in India |
| Material | SS Steel |
| Model Name/Number | HMPL-SHA |
| Usage/Application | Sticker Labeling |
if you are interested, please fill the below details:
