Price ₹
7,50,000.00
| General Details: | |
| Model Name/Number | HMPL-RBS |
| Brand | HMPL |
| Model | HMPL-RBS |
| Others: | |
| Availability | In Stock |
| Cap Feeding System | Vibratory Bowl with chute Suitable Cap |
| Cap Size) | 22 & 25 mm / 25 & 28 mm |
| Capping Head Type | ROPP / SCREW Cap |
| Change Parts Required | (A) Bottle: Star Wheel, Center guide.(B) Cap: Vibratory bowl, Delivery chute & Die. |
| Conveyor Height | 850+-50 mm Adjustable |
| Country of Origin | Made in India |
| Dimensions | 2440 mm (L) x 850 mm (W) x 1900 mm (H) Approx. |
| Direction of Movement | Left to Right |
| Height of Conveyor | 850±50 mm Adjustable |
| Net Weight | 350 Kg Approx. |
| No. of Sealing Head | 1 / 4 / 6 / 8 Nos. |
| Output Speed | 30 to 120 Bottles/Minute |
| Packaging Type | Bottle |
| Power Supply | Three Phase / 440 V AC / 50 Hz |
| Product Size | 10 ml to 500 ml Bottles |
| Size | 10 ml to 500 ml Bottles |
Price ₹
5,50,000.00
| General Details: | |
| Material | SS Steel |
| Model Name/Number | HMPL-RBS |
| Brand | HMPL |
| Automation Grade | Automatic |
| Capacity | ROPP / SCREW Cap |
| Others: | |
| Availability | In Stock |
| Conveyor Height | 850 +- 50 mm Adjustable |
| Driven Type | Electric |
| Size | 22 & 25 mm / 25 & 28 mm |
| Voltage | 440 V AC |
Price ₹
3,50,000.00
| General Details: | |

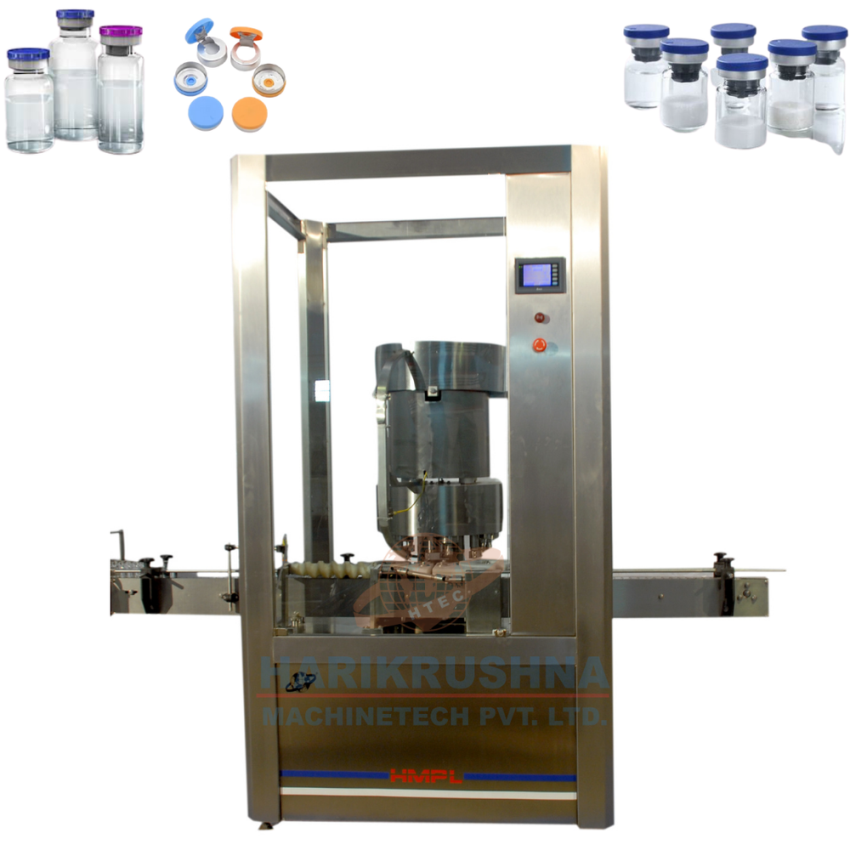

| Model Name/Number | HMPL-PRE-RVS |
| Brand | HMPL |
| Model | HMPLPRERVS |
| Power Consumption | 2.0 kVA |
| Others: | |
| Air Supply | N.A. |
| Availability | In Stock |
| Cap Size | 20 mm to 22 mm |
| Country of Origin | Made in India |
| Dimensions | 2525 mm (L)x 950 mm (W)x 2000mm(H) Approx. |
| Frequency | 50 Hz |
| Net Weight | 600 Kg Approx. |
| Output speed | 30 to 120 Vials/Minute |
| Phase | Three Phase |
| Rigid vibration free construction for trouble free performance. | The mechanical driven system of the whole machine is through foot mounted motor and gear box. |
| Sealing Head | 1 / 4 / 6 head |
| Suitable For | 2 ml to 30 ml (with the help of required change parts) |
| The complete synchronized mechanism is designed on gears and chain. | Totally synchronized PLC controlled system. |
| The Real output speed (vials/minute) appear on HMI. | Few change parts are required for different vials. |
| The unit is made compact versatile as per GMP norms. | The structure is made of SS 304. |
| The whole machine covered with cabinet of SS and polycarbonate glass doors. | User friendly to adjust the different speed (vials/minute) with the help of HMI. |
| There is a special designed vibrator bowl and chute with no cap sensors for continuous flow of the cap. | The faults such as vials without bungs, no caps appear on the HMI and can be attended easily. |
| User friendly and very less maintenance required. | The structure construction of machine is useful to mount laminar flow. |
| Vials without bungs and no caps are detected by the sensors and give the alarm alert and machine stop itself. | Daily production ratio, production counter is given with the password protection. |
| Voltage | 415 V AC |
| Working Height | 860 50mm Adjustable |
| Very less mechanical adjustment required due to the special design. | PLC modes are user friendly and can be operated easily. |
Price ₹
5,00,000.00
| General Details: | |
| Model Name/Number | HMPL-PRE-RBS |
| Brand | HMPL |
| Model | HMPL–PRE–RBS |
| Power Consumption | 2.5 kVA |
| Others: | |
| Air Supply | N.A. |
| Availability | In Stock |
| Cap Size | 22 mm to 28 mm Cap (with the help of change part) |
| Country of Origin | Made in India |
| Daily production ratio, production counter is given with the password protection. | There is a special designed mechanical vibratory bowl and chute with no cap sensors for continuous flow of the cap. |
| Dimensions | 2100 mm (L)x 950mm (W)x 2000mm(H) Approx. |
| Few change parts are required for different products. | No products and no caps are detected by the sensors and give the alarm alert and machine stop itself. |
| Frequency | 50 Hz |
| Net Weight | 650 Kg Approx. |
| Output speed | 30 to 150 Products/Minute |
| Phase | Three Phase |
| PLC modes are user friendly and can be operated easily. | User friendly and very less maintenance required. |
| Product Size | 15 mm Ø to 90mm Ø |
| Rigid vibration free construction for trouble free performance. | The mechanical driven system of the whole machine is through flange mounted motor and gear box. There is no usage of V belt, pulley. This ensures less breakages and thereby easy maintenance and high t |
| Sealing Head | 1/ 4 / 6 / 8 Head |
| The complete synchronized mechanism is designed on spur gears instead of chains and chain wheel. This feature avoids time for machine setting frequently. | Totally synchronized PLC controlled system. |
| The faults such as no products, no caps appear on the HMI and can be attended easily. | Very less mechanical adjustment required due to the special design. |
| The unit is made compact versatile as per GMP norms. | The structure is made of MS cladded with SS 304. |
| User friendly to adjust the different speed (products / minute) with the help of PLC and HMI. | The output speeds (PPM – products / minute) appear on HMI. |
| Voltage | 415 V AC |
| Working Height | 850mm ± 50 mm Adjustable. |
