Vial Washing Machine

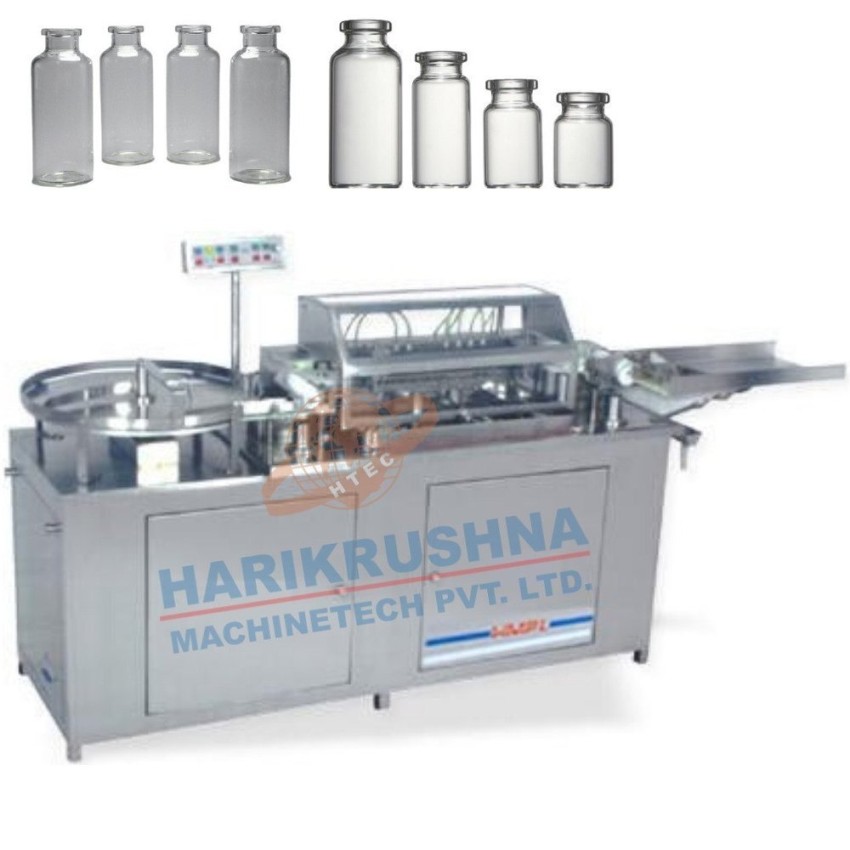

Automatic Linear Vial Washing Machine
₹
2,000,000.00
General Details: | |
Model | 1 |
Material | SS316L & SS304 |
Power Source | 415 V AC |
Grade | The contact parts are made of Stainless steel 316L. |
Phase | 3 Phase |
Others: | |
Air Consumption | 5 CFM |
Air Requirement | 4 to 6 Bar |
Application | Washing |
Automation Grade | Automatic |
Brand | HMPL |
Capacity | 60 to 200 Vials/Minute (Speed depend on product size) |
Contact Parts | SS316L |
Country of Origin | Made in India |
Direction | Left to Right |
Driven Type | Automatic |
Electrical Supply | 3 Phase + Neutral + Earthing / 415 V AC / 50Hz |
Frequency | 50 Hz |
Gross Weight | 600 Kg Approx. |
Height Of Conveyor | 875 +- 50MM Adjustable |
I Deal In | New Only |
Machine Dimension | 3265mm (L) x 1835 mm (W) x 850mm (H) Approx. |
Material Grade | The contact parts are made of Stainless steel 316L |
Minimum Order Quantity | 1 |
Model Name/Number | HMPL - LVW |
Output Speed | Output Speed 60 to 200 Vials/Minute (Speed depend on product size) |
Overall Dimensions | 3265mm (L) x 1835 mm (W) x 850mm (H) Approx. |
Power | 3 Phase + Neutral + Earthing / 415 V AC / 50Hz |
Power Consumption | 1.5HP Main Machine/ 2.25HP Pumping Station/ 0.25HP Loading Platform) |
Power Supply | 3 Phase + Neutral + Earthing / 415 V AC / 50Hz |
Production Rate | 60 to 200 Vials/Minute (Speed depend on product size) |
Size | 3265mm (L) x 1835 mm (W) x 850mm (H) Approx. |
Size/Dimension | 3265mm (L) x 1835 mm (W) x 850mm (H) Approx. |
Usage/Application | Washing |
Vial Sizes | 2 ml to 30 ml Round Glass Vials |
Voltage | 415 V AC |
Warranty | 1 Year |
Weight | 600 Kg Approx. |
Working Height | 875 +- 50MM Adjustable |
The Automatic Linear Vial Washing Machine consists of the main structure, covered with SS cabinet safety acrylic doors (OPTIONAL), in-feed turntable, washing nozzles, out-feed conveyor, pumps with the tank, filter housing & cartridge, pneumatic components, motors & gearbox, and electrical panel, AC Drive, PLC & HMI (OPTIONAL).Additional Information Delivery Time 6-8 Weeks Production Capacity 60 to 200 Vials/Minute (Speed depend on product size) Packaging Details Wooden Packaging Interested in this product?Get Latest Price from the sellerContact SellerProduct VideoCompany DetailsAbout the CompanyYear of Establishment1999Legal Status of FirmLimited Company (Ltd./Pvt.Ltd.)Nature of BusinessManufacturerNumber of Employees101 To 500 PeopleAnnual TurnoverRs. 25 - 50 CroreIndiaMART Member SinceJune 2012GST24AAFCH7738A1ZTImport Export Code (IEC)AAFCH*****"Harikrushna Machines Private Limited," a renowned manufacturer and exporter, specializes in Water Plants, Automatic Sticker Labeling Machines, Automatic Filling Machines, Automatic Sealing Capping Machinery, and more. Established in 2000, we have a dedicated team committed to achieving the highest customer satisfaction.To ensure a seamless experience for our customers, we've implemented standardized processes, enabling large-scale production within specified timelines. This ensures the availability of our products whenever our customers require them.Our extensive infrastructure includes separate divisions for production, quality assurance, warehousing, logistics, administration, and client support. Equipped with state-of-the-art machinery, we utilize the latest scientific technology to fabricate water filtration systems. Our clientele spans domestic and commercial units nationwide.We owe our success to Mr. Prerak Dave, our mentor, whose guidance and motivation inspire our workforce, especially during challenging market conditions.Harikrushna Machines Excels in Offering Complete Liquid Processing Liquid Packaging Solutions to Segments Like Beverages, Chemicals, Cosmetics, Dairy, Detergents, Distilleries, Edible Oil, Fertilizers, Food, Nutraceuticals, Paints, Pharmaceutical, Lubricants Oil, Pesticides, Pigments, Plastics, and Other Liquid-based Manufacturing Industries HMPL Spectrum of Liquid Products Includes Various Washing Machines, Filling Machines, Plugging, Sealing and Capping Machines, Labeling Machines and Special Purpose Machines Like Automatic Shrink Sleeve Applicator, Trio-block 3 in 1 (Rinsing, Filling and Capping), Automatic Mosquito Replant Packing Systems, Flavored Milk/Plain Milk Packaging System and Pre-Filled Syringe Filling and Stoppering Machine. HMPL Spectrum of Processing Solution Includes Various Liquid Oral/syrup Manufacturing Plant, Ointment/Lotion/Cream/Toothpaste Manufacturing Plant, Various Application Mixer Machine Like Juice, Paint, Gel, Milk, Curd, Etc.To 50 Hz 415 V Ac Automatic Linear Vial ... I agree to the terms and privacy policy Seller Contact DetailsHarikrushna Machines Private Limited VARSHA SHARMAPlot No.513 Ind.estate, Phase-4 G.i.d.c Vatva, G. I. D. C., Vatva Ahmedabad - 382445, Gujarat, IndiaGet Directionshttps://www.harikrushnamachines.comView Mobile No.Send SMSSend Email

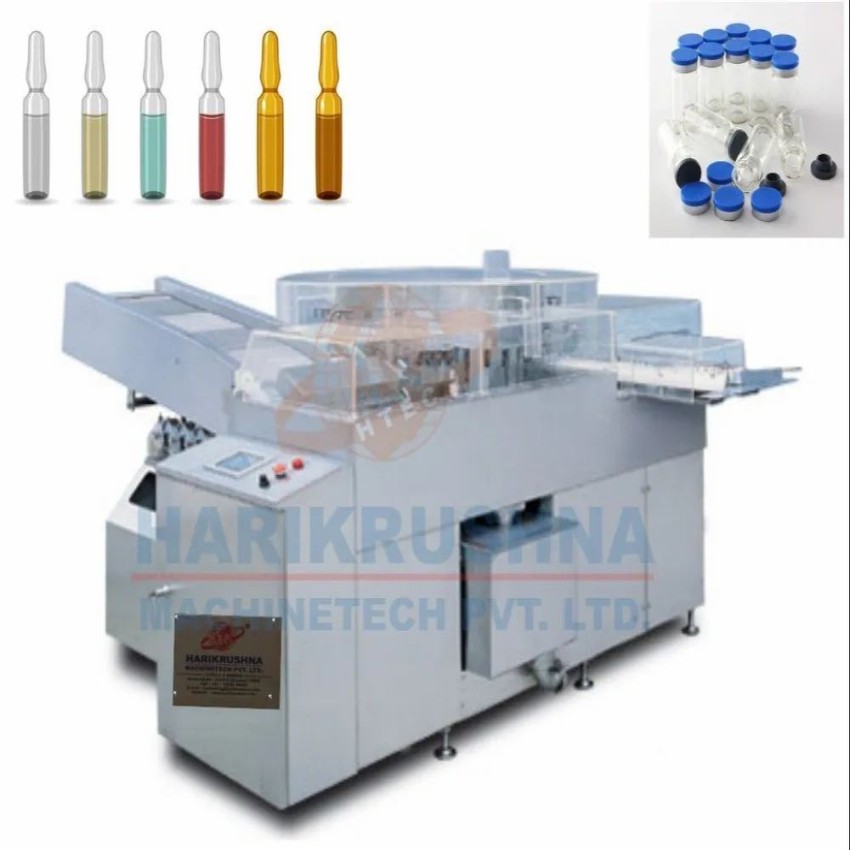

Automatic High-Speed Rotary Vial Washing Machine
₹
2,000,000.00
General Details: | |
Model | 1 |
Material | Stainless Steel |
Power Source | 3 Phase + Neutral + Earthing / 415 V AC / 50 Hz |
Grade | The structure is made of SS 304 & The contact parts are made of SS 316 |
Phase | 3 Phase + Neutral + Earthing / 415 V AC / 50 Hz |
Others: | |
Air Consumption | 6 to 8 Bar |
Air Requirement | 6 to 8 Bar |
Application | Vial |
Automation Grade | Automatic |
Brand | HMPL |
Capacity | 240 Vials Per Minute (Speed Depends upon Product Size) |
Contact Parts | SS316L |
Container Diameter | 16 mm to 47 mm |
Country of Origin | Made in India |
Direction | Left to Right |
Driven Type | Automatic |
Electrical Supply | 3 Phase + Neutral + Earthing / 415 V AC / 50 Hz |
Frequency | 50 Hz |
Gross Weight | 1800 Kg (Approx.) |
Height Of Conveyor | 900 +- 50 mm Adjustable |
I Deal In | New Only |
Machine Dimension | 2250 mm (L) x 2250 mm (W) x 1450 mm (H) Approx. |
Material Grade | The structure is made of SS 304 & The contact parts are made of SS 316 |
Minimum Order Quantity | 1 |
Model Name/Number | HMPL-RVW-240 |
Overall Dimensions | 2250 mm (L) x 2250 mm (W) x 1450 mm (H) Approx. |
Production Rate | 240 Vials Per Minute (Speed Depends upon Product Size) |
Size | 2250 mm (L) x 2250 mm (W) x 1450 mm (H) Approx. |
Size/Dimension | 2 ml to 100 ml |
Usage/Application | Vial |
Vial Dia | 16 mm to 47 mm |
Vial Height | 35 mm to 100 mm |
Vial Sizes | 2 ml to 100 ml |
Voltage | 415 V |
Warranty | 1 Year |
Weight | 1800 Kg (Approx.) |
Automatic Rotary Vial Washing Machine is Widely Used in the Pharmaceutical, Veterinary, and Biotech Industries. The machine With a Specially Designed Gripper System Holds the Vial from the Neck and Invert till the Washing Operation is Completed Again After Washing Release the Vial on the out-feed Feed Screw System in Vertical Position Ensures Positive Wash Vials.Additional Information Delivery Time 6-8 Weeks Production Capacity 240 Vials Per Minute (Speed Depends upon Product Size) Packaging Details Wooden Packaging Interested in this product?Get Latest Price from the sellerContact SellerAbout the CompanyYear of Establishment1999Legal Status of FirmLimited Company (Ltd./Pvt.Ltd.)Nature of BusinessManufacturerNumber of Employees101 To 500 PeopleAnnual TurnoverRs. 25 - 50 CroreIndiaMART Member SinceJune 2012GST24AAFCH7738A1ZTImport Export Code (IEC)AAFCH*****"Harikrushna Machines Private Limited," a renowned manufacturer and exporter, specializes in Water Plants, Automatic Sticker Labeling Machines, Automatic Filling Machines, Automatic Sealing Capping Machinery, and more. Established in 2000, we have a dedicated team committed to achieving the highest customer satisfaction.To ensure a seamless experience for our customers, we've implemented standardized processes, enabling large-scale production within specified timelines. This ensures the availability of our products whenever our customers require them.Our extensive infrastructure includes separate divisions for production, quality assurance, warehousing, logistics, administration, and client support. Equipped with state-of-the-art machinery, we utilize the latest scientific technology to fabricate water filtration systems. Our clientele spans domestic and commercial units nationwide.We owe our success to Mr. Prerak Dave, our mentor, whose guidance and motivation inspire our workforce, especially during challenging market conditions.Harikrushna Machines Excels in Offering Complete Liquid Processing Liquid Packaging Solutions to Segments Like Beverages, Chemicals, Cosmetics, Dairy, Detergents, Distilleries, Edible Oil, Fertilizers, Food, Nutraceuticals, Paints, Pharmaceutical, Lubricants Oil, Pesticides, Pigments, Plastics, and Other Liquid-based Manufacturing Industries HMPL Spectrum of Liquid Products Includes Various Washing Machines, Filling Machines, Plugging, Sealing and Capping Machines, Labeling Machines and Special Purpose Machines Like Automatic Shrink Sleeve Applicator, Trio-block 3 in 1 (Rinsing, Filling and Capping), Automatic Mosquito Replant Packing Systems, Flavored Milk/Plain Milk Packaging System and Pre-Filled Syringe Filling and Stoppering Machine. HMPL Spectrum of Processing Solution Includes Various Liquid Oral/syrup Manufacturing Plant, Ointment/Lotion/Cream/Toothpaste Manufacturing Plant, Various Application Mixer Machine Like Juice, Paint, Gel, Milk, Curd, Etc.To 50 Hz Automatic High-Speed Rotary Vial ... I agree to the terms and privacy policy Seller Contact DetailsHarikrushna Machines Private Limited VARSHA SHARMAPlot No.513 Ind.estate, Phase-4 G.i.d.c Vatva, G. I. D. C., Vatva Ahmedabad - 382445, Gujarat, IndiaGet Directionshttps://www.harikrushnamachines.comView Mobile No.Send SMSSend Email
