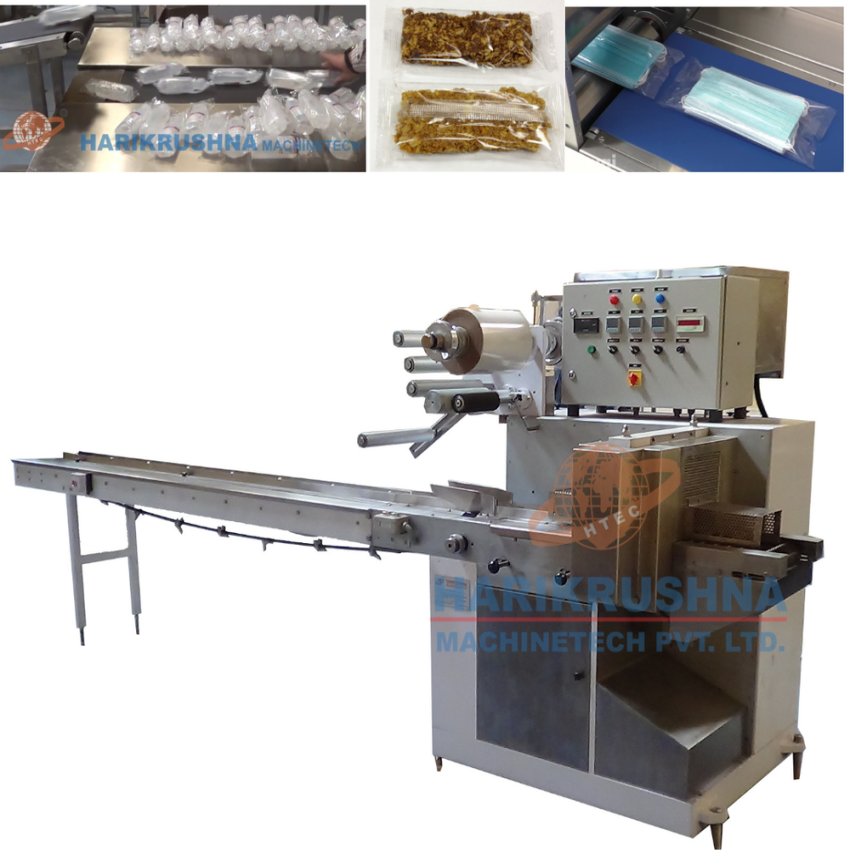

Horizontal Flow Wrap Machine
Automatic Horizontal Flow Wrapping Machine, Model Name/Number: Hmpl-hfw
₹
700,000.00
| General Details: | |
| Model | HMPL-HFW |
| Voltage | 415 V AC |
| Phase | Three Phase |
| Others: | |
| All the Bearings are makes of SKF OR NTN. | Cross sealing heaters operate on 220 volt. |
| Availability | In Stock |
| Brand | HMPL |
| Conveyor made of specialized positive pusher on chain. In feed conveyor 2 meter long for easy feed of our product. | MAIN ON/OFF SWITCH: This is a switch to switch ON/OFF power to the machine. |
| Country of Origin | Made in India |
| Design registration with reverse forward photocell. | IPD controller provided. |
| EMERGENCY SWITCH: This is a push button to stop the machine immediately. | All Electrical Components are ISI Marks. |
| Frequency | 50 Hz |
| Gear sockets EN-8. | Tower light. |
| Machine Dimension | 3990 mm L x 1100 mm W x 1950mm H Approx. |
| Machine Net Weight | 750 Kg. Approx. |
| Model Name/Number | HMPL-HFW |
| Motor Power | 3 HP |
| Output Speed | Up to 120 Bottles/Minute |
| Packing Material | Heat Sealable Laminated Film 22 to 25 micron thick |
| Power Load | 2 KW |
| Power Supply | 3 HP/Three Phase/ 415V AC/ 50 Hz |
| Product Size | 100 ml, 500 ml 1000 ml Bottles |
| Suitable for | I. V. Bottles |
| The contact parts are made of SS304. | Rigid vibration free construction, noiseless for trouble free performance. |
| The unit is made compact versatile as per GMP norms. | The structure is made of MS and cladding with SS304 sheet. |
Horizontal Flow Wrap Machine, Model Name/Number: Hmpl-hfw
₹
1,250,000.00
| General Details: | |
| Voltage | 415V AC |
| Sealing Type | Flow Wrap |
| Others: | |
| Availability | In Stock |
| Brand | HMPL |
| Country of Origin | Made in India |
| Model Name/Number | HMPL-HFW |
| Packaging Type | Flow Wrapping |
| Size | 3990 mm L x 1100 mm W x 1950mm H Approx. |
| Usage/Application | I. V. Bottles or any others kind of products |
