Price ₹
7,50,000.00
| General Details: | |
| Model | HMPL-VLF |
| Automation Grade | Automatic |
| Voltage | 230 V AC |
| Usage/Application | Industrial |
| Others: | |
| ±1 % Filling accuracy on single dose | Nitrogen purging arrangement (OPTIONAL) |
| Air Supply | 4 to 6 Kg/Cm² (pneumatic operated stopper) |
| Availability | In Stock |
| Bottle size (Ø) | 15mm Ø to 70mm Ø |
| Brand | HMPL |
| Dimensions Approx. | 2135 mm (L)x 1150mm (W)x 1610mm(H) |
| Direction of Movement | Left to Right |
| Drain tray around the machine platform | Drip tray under the conveyor |
| Elegant and easy control panel for total control on operation | All interlock must be shown on control panel |
| Fill Size | 30 ml to 240 ml Round PET Bottles |
| Filling Volume | 30 to 200 ML |
| Frequency | 50 Hz |
| Height of Conveyor | 850 ± 50 mm Adjustable |
| MCB for over load protection, and prevent against short circuit | Inbuilt protection against over current, voltage fluctuation, short circuit in AC frequency drive |
| Minimum change overtime, from one size to another bottle or fill size | Self-lubricating UHMW-PE guide profile for SS slat chain provides low friction wear surface, smooth and noiseless conveying |
| Model Number | HMPL-VLF |
| Net Weight Approx. | 600 Kg |
| No Bottle No Filling System – Machine stop at Home position | Diving nozzle device |
| Number of Head/Syringe | 4 / 6/ 8 / 10 / 12 Nos. |
| Output speed | 30 to 120 Bottles/Minute |
| Pneumatic bottle stopping arrangement | Synchronized two nos. AC drives for main motor & conveyor belt |
| Power Supply | Three Phase / 415V AC / 50 Hz |
| Rigid vibration free construction for trouble free performance | SS Elegantly matt finished body |
| SS measurement scale for filling volume adjustment | Safety guard for conveyor gearbox, motor and pneumatic cylinders |
| The unit is made compact & versatile as per GMP norms | The structure is made of MS cladding with SS 304 |
| Weight | 600 Kg |

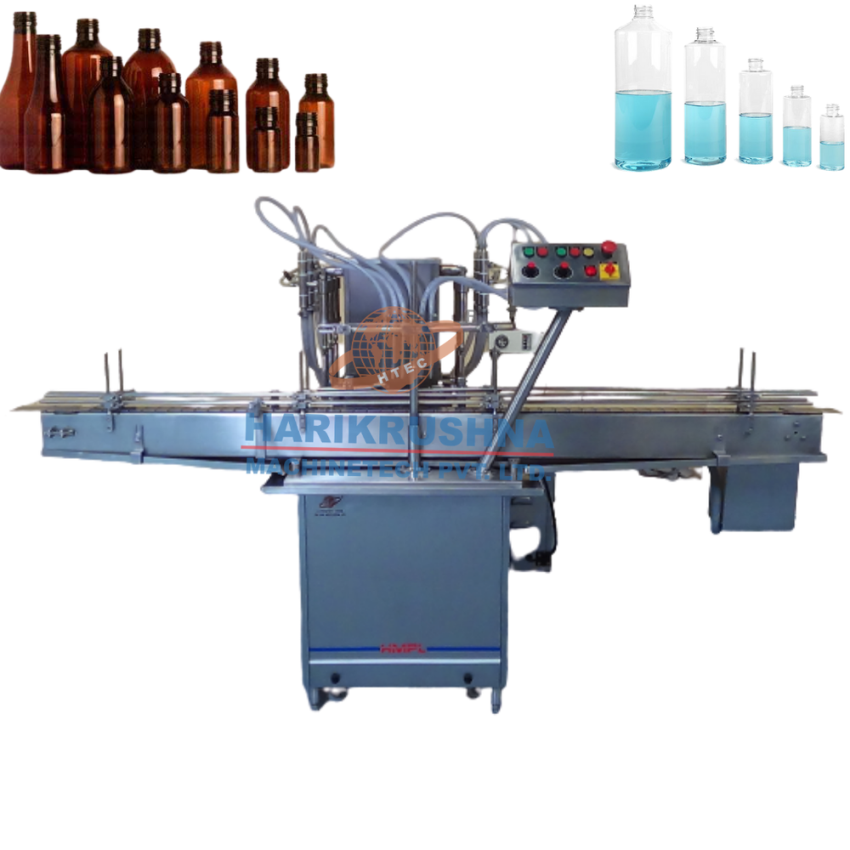

Price ₹
7,50,001.00
| General Details: | |
| Filling Head | 4/6/8 Heads |
| Model | HMPL–PRE–RBF |
| Automation Grade | Automatic |
| Voltage | 440 V AC |
| Driven Type | Electric |
| Power Consumption | 2.5 KVA |
| Material | Stainless Steel |
| Usage/Application | Industrial |
| Others: | |
| Air Supply | 4 to 6 Kg/Cm² |
| Availability | In Stock |
| Brand | HMPL |
| Country of Origin | Made in India |
| Dimensions | 2100 mm (L) x 900 mm (W) x 2000 mm (H) Approx. |
| Direction of Movement | Left to Right |
| Filling Volume | 50 ml to 5000 ml PET/HDPE Bottles/Jars |
| Frequency | 50 Hz |
| Model Name/Number | HMPLSAN-MAC |
| Net Weight | 400 Kg Approx. |
| Output Speed | 20 to 80 Bottles/Minute(Speed depends upon fill volume & viscosity of liquid) |
| Phase | Three Phase |
| Power Supply | Three Phase + Neutral + Earthing / 440 V AC / 50 Hz |
| Product MOC | PET/HDPE Bottles/Jars |
| Working Height | 850 ± 50 mm Adjustable |

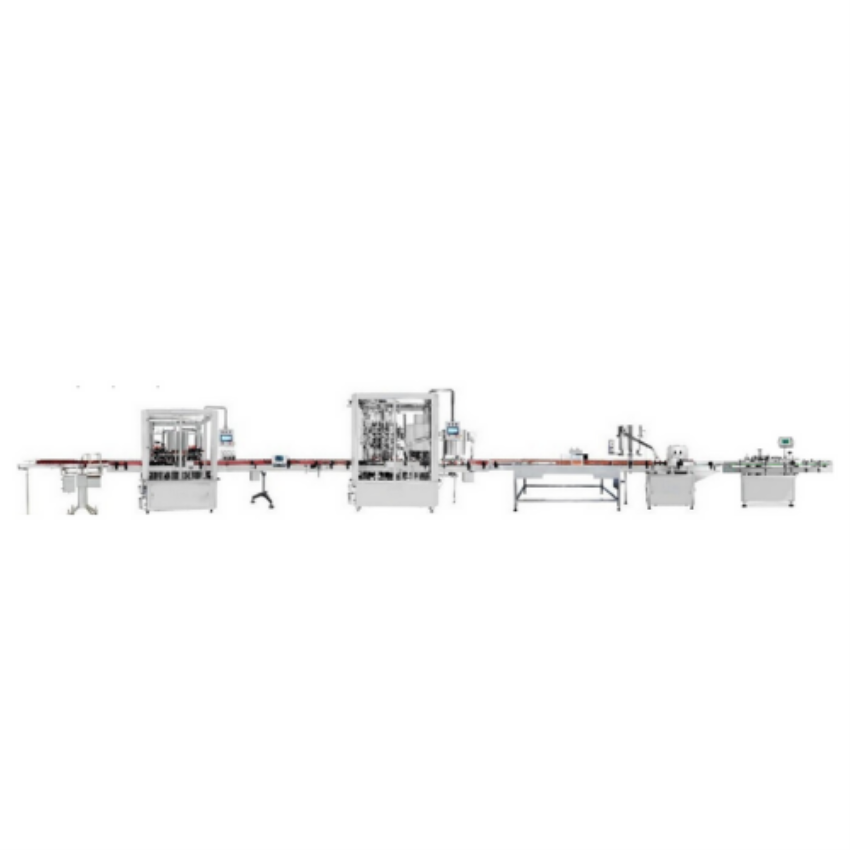

Price ₹
25,00,000.00
| General Details: | |
| Model | Packaging Machinery |
| Automation Grade | Automatic |
| Capacity | 1 ML TO 5000 ML |
| Driven Type | Electric |
| Packaging Type | bottles |
| Others: | |
| Automatic Grade | Automatic |
| Availability | In Stock |
| Brand | HMPL |
| Model Name/Number | HMPLLIQUIDLINE |
| Power(KW) | 3 Phase Power Supply |
| Voltage(V) | 440 |
