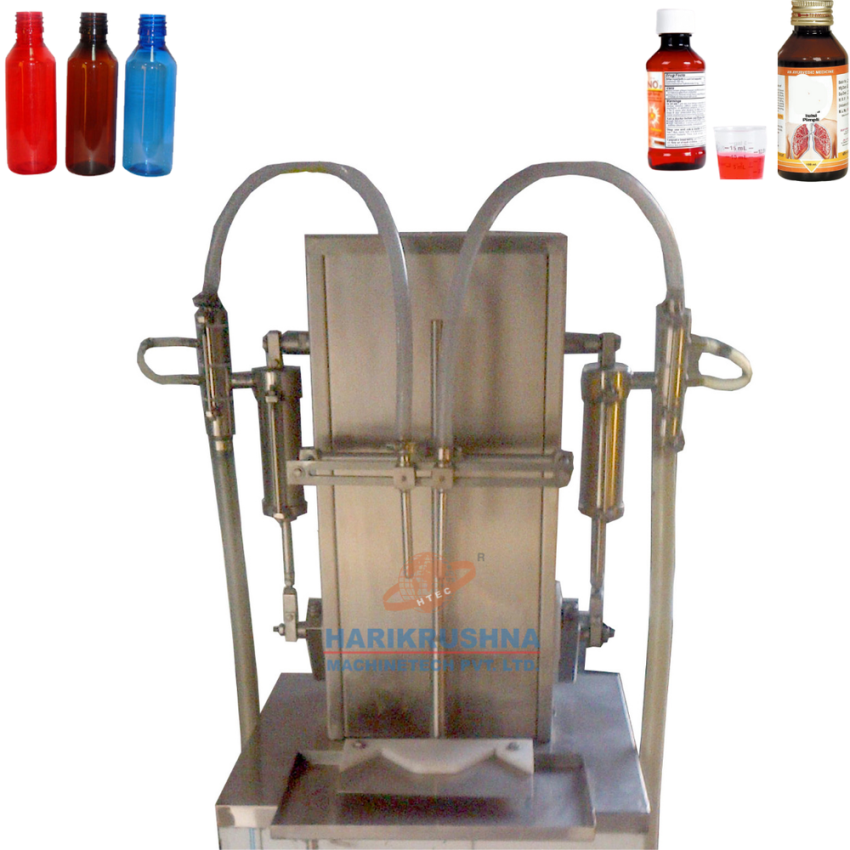

The Semi-Automatic Timer Filling Machine consists of the main structure of SS, product holders, 100 liters tank with a stirrer, level controller, filling pump, filling nozzle, auto & manual mode, pedal switch & AC drive
SPECIAL FEATURES:
The Machine is manufactured or developed accordance with GMP standards.
The whole structure is made of SS 304 matt finish.
The contact parts are made of SS 316 such as pump / nozzle / tank & valve.
Rigid vibration free construction for trouble free performance.
Use of food grade PVC breaded for the flow of liquid.
Each filling head can work independently.
Unique Bottle & Nozzle holding device.
The storage tank with stirrer, level controller, auto inlet valve, over flow connection.
The machine is supplied with easy to clean inbuilt storage tank.
The drain valve below the filling tank for flushing purpose.
Drain tray around the machine platform.
Filling pump which is useful to suck the filling material from storage tank to nozzle end very quickly. More over this facility is useful to clean filling line as well as filling pump. The same function for individual pumps.
Easy to adjust for different filling volume.
Machine has electronic components such as AC Drive, speed port switch, timer in place of mechanical parts such as syringe, Teflon seal rod etc.
Digitally controlled settings.
Three phase power requirements.
Very high fill accuracy of ± 1 % with water.
No change parts required for different filling volumes / bottles.
Flow of liquid can be controlled by VFD.
User friendly and high scalability.
NO BOTTLE NO FILLING.
Additional Information
Prime with variable speed facility.
Individual Prime facility for each Pump.
Pump start with settable time in auto mode.
Settable time facility to dispense different volume.
Settable speed facility to dispense different viscosity product (important feature for foamy product).
Adjustable filling nozzle with horizontal and vertical movement for different diameter and different Height products with adjustable product guide.
Anti-shutoff valve to avoid dripping.
Item Code HMPL-STF-TT-2 Delivery Time 4 to 6 Weeks Production Capacity 15 to 20 bottles (Water) (Depending upon volume, viscosity of Liquid & manual loading Packaging Details Wooden Packaging Interested in this product?Get Latest Price from the sellerContact SellerProduct VideoAbout the CompanyYear of Establishment1999Legal Status of FirmLimited Company (Ltd./Pvt.Ltd.)Nature of BusinessManufacturerNumber of Employees101 To 500 PeopleAnnual TurnoverRs. 25 - 50 CroreIndiaMART Member SinceJune 2012GST24AAFCH7738A1ZTImport Export Code (IEC)AAFCH*****"Harikrushna Machines Private Limited," a renowned manufacturer and exporter, specializes in Water Plants, Automatic Sticker Labeling Machines, Automatic Filling Machines, Automatic Sealing Capping Machinery, and more. Established in 2000, we have a dedicated team committed to achieving the highest customer satisfaction.To ensure a seamless experience for our customers, we've implemented standardized processes, enabling large-scale production within specified timelines. This ensures the availability of our products whenever our customers require them.Our extensive infrastructure includes separate divisions for production, quality assurance, warehousing, logistics, administration, and client support. Equipped with state-of-the-art machinery, we utilize the latest scientific technology to fabricate water filtration systems. Our clientele spans domestic and commercial units nationwide.We owe our success to Mr. Prerak Dave, our mentor, whose guidance and motivation inspire our workforce, especially during challenging market conditions.Harikrushna Machines Excels in Offering Complete Liquid Processing Liquid Packaging Solutions to Segments Like Beverages, Chemicals, Cosmetics, Dairy, Detergents, Distilleries, Edible Oil, Fertilizers, Food, Nutraceuticals, Paints, Pharmaceutical, Lubricants Oil, Pesticides, Pigments, Plastics, and Other Liquid-based Manufacturing Industries HMPL Spectrum of Liquid Products Includes Various Washing Machines, Filling Machines, Plugging, Sealing and Capping Machines, Labeling Machines and Special Purpose Machines Like Automatic Shrink Sleeve Applicator, Trio-block 3 in 1 (Rinsing, Filling and Capping), Automatic Mosquito Replant Packing Systems, Flavored Milk/Plain Milk Packaging System and Pre-Filled Syringe Filling and Stoppering Machine. HMPL Spectrum of Processing Solution Includes Various Liquid Oral/syrup Manufacturing Plant, Ointment/Lotion/Cream/Toothpaste Manufacturing Plant, Various Application Mixer Machine Like Juice, Paint, Gel, Milk, Curd, Etc.To Semi-Automatic Timer Filling Machine I agree to the terms and privacy policy Seller Contact DetailsHarikrushna Machines Private Limited VARSHA SHARMAPlot No.513 Ind.estate, Phase-4 G.i.d.c Vatva, G. I. D. C., Vatva Ahmedabad - 382445, Gujarat, IndiaGet Directionshttps://www.harikrushnamachines.comView Mobile No.Send SMSSend Email
